Large Format Adjustable Height Vertical
LDASG-400-20Download Product Bulletin (pdf)
Run large format protein or nucleic acid gels on these versatile units
• Unsurpassed versatility - designed to adapt to changing methodologies. Can run 3 different length gels, preparative gels, large format SDS-PAGE and DNA/RNA gels or sequencing gels on the same unit by ordering appropriate accessories. Glass plates and spacers are available in heights of 22cm, 32cm and 42cm.
• A wide selection of precision-machined combs are available.
• Compressible, long-lasting silicone gasket on face of unit provides leak-proof seal when glass plates are clamped in place.
• Gel-Wrap™ casting system makes gel casting quick and easy for gel thicknesses of 0.75mm, 1.0mm, 1.5mm, 2.0mm and 3.0mm.
• Bottom buffer reservoir(s) conveniently detaches from base of unit for ease in cleaning and disposal of buffer.
• Accessory anodized aluminum cooling plates can be ordered to clamp onto glass plates to evenly distribute the heat generated during electrophoresis.
• This system can be used for fluorescence based assays whose images can be captured on a scanner directly through optional borosilicate glass plates.

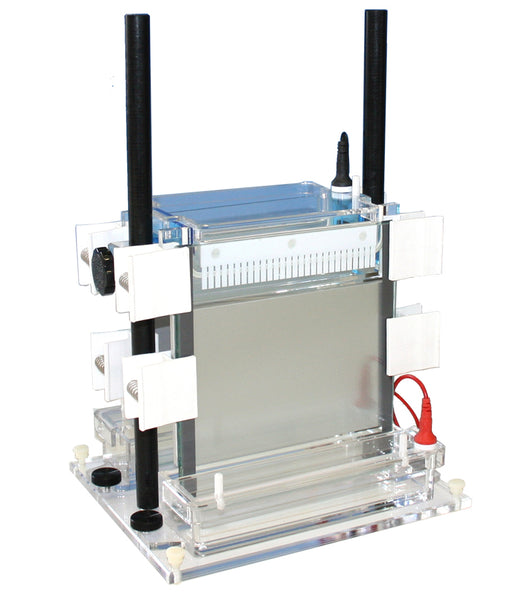

Large Format Dual Adjustable Vertical System
for Protein Applications
LDASG-400-20
Complete System:
• Dual vertical electrophoresis cell with heavy duty guide rods, removable upper and lower reservoirs, safety covers with power leads
• Leak proof silicone gasket on upper reservoir to which the glass plates are clamped
• Platinum electrodes
• Leveling base with bubble level
• 2 combs, 1.5mm thick x 20 teeth (Cat. # SG20-1520)
• 2 sets Gel Wrap® glass plates
• 2 sets Gel Wrap® spacers (1.5mm thick)
• 2 Gel Wrap® gaskets for gel casting
• 2 wedge plate separators
• White spring clamps (8 x Cat. GPC-0001 and 12 x Cat. # GPC-0002)
• Conversion plate for running one gel at a time (Cat. # SGP20-CP)
Large Format Dual Adjustable Vertical System
for Nucleic Acid Applications
LDASG-400-20NA
Includes same as above except glass plates and spacer sets are not modified to be used with Gel Wrap® and no Gel Wrap® is included
• 2 combs, 0.4mm x 20 teeth (Cat. # SG20-0420)
• 2 sets of spacers (0.4mm thick)
• One Gel Tape Roll (Cat. # GT-72-10)

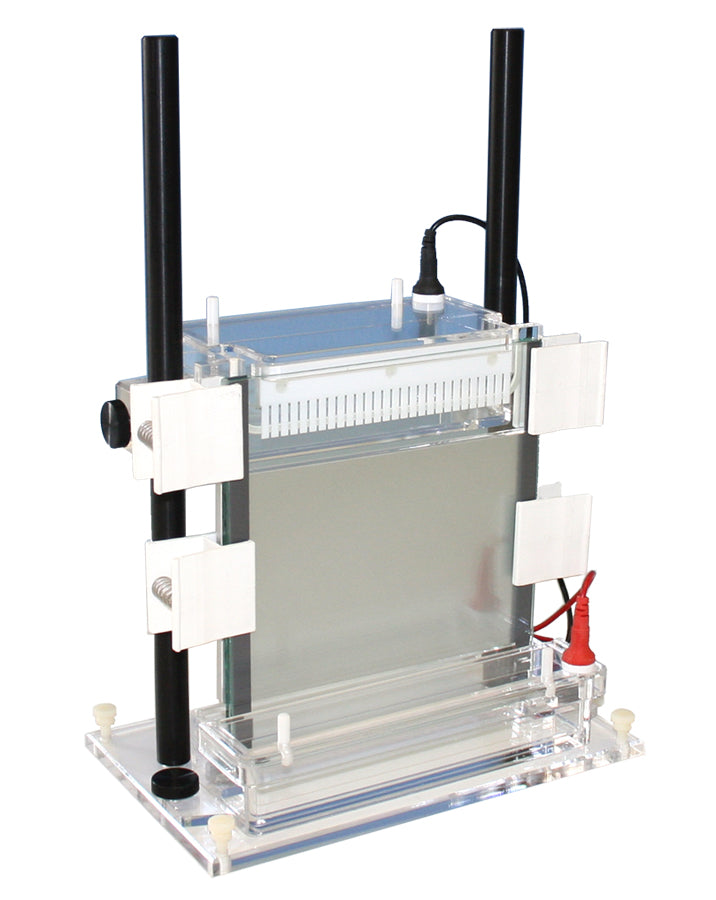

Large Format Adjustable Vertical System
for Protein Applications
LSG-400-20
Complete System:
• Single vertical electrophoresis cell with heavy duty guide rods, removable upper and lower reservoirs, safety covers with power leads
• Leak proof silicone gasket on upper reservoir to which the glass plates are clamped
• Platinum electrodes
• Leveling base with bubble level
• 1 comb, 1.5mm thick x 20 teeth (Cat. # SG20-1520)
• 1 set Gel Wrap® glass plates
• 1 set Gel Wrap® spacers (1.5mm thick)
• 1 Gel Wrap® gaskets for gel casting
• 1 wedge plate separators
• White spring clamps (4 x Cat. GPC-0001 and 6 x Cat. # GPC-0002)
Large Format Adjustable Vertical System
for Nucleic Acid Applications
LSG-400-20NA
Includes same as above except glass plates and spacer sets are not modified to be used with Gel Wrap® and no Gel Wrap® is included
• 1 comb, 0.4mm x 20 teeth (Cat. # SG20-0420)
• 1 set of spacers (0.4mm thick)
• One Gel Tape Roll (Cat. # GT-72-10)
